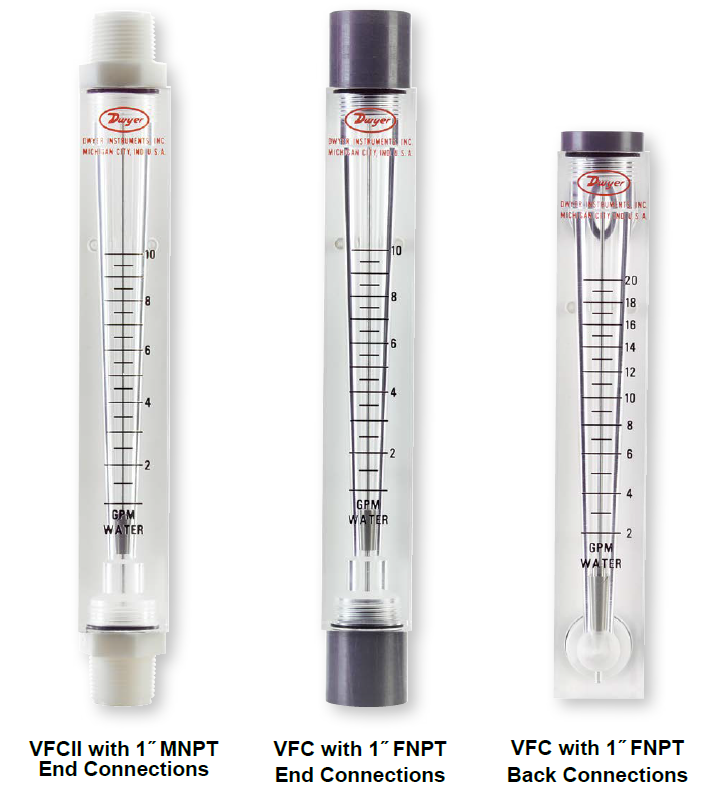

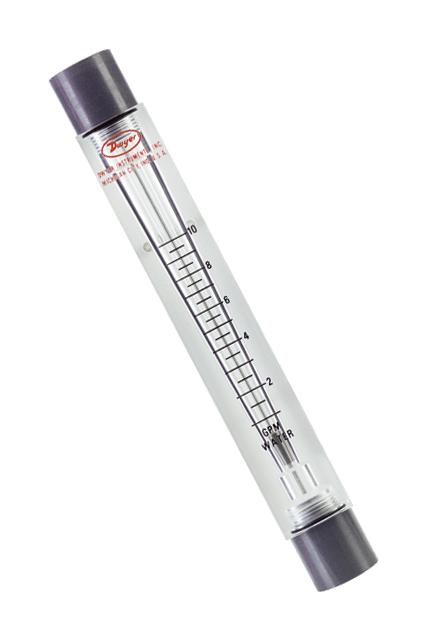

The SERIES VFC Visi-Float® Flowmeter is a direct reading, precision machined, clear acrylic body flowmeter suitable for both gas and liquid applications. This Series consists of two 5˝ (127 mm) scale flowmeters, the VFC and VFC II. The VFC features
PVC 1˝ female NPT connections and the VFC II units are equipped with acetal thermoplastic 1˝ male NPT fittings.
FEATURES/BENEFITS
• Bodies are cut and precision machined from solid, clear acrylic blocks allowing for complete visual inspection
• White background allows for better visibility of the float increasing reading accuracy
• Direct reading scales are hot stamped into the plastic eliminating the need for troublesome conversions and increasing product operating life
• Precision machined tapered bore enables high repeatability
• Low installation costs with back or end connection options
APPLICATIONS
• Medical equipment
• Laboratory equipment
• Air samplers
• Gas analyzers
• Pollution monitors
• Chemical injectors
• Cabinet purging
• Remediation
• Osmosis skids
SPECIFICATIONS
Service: Compatible gases & liquids.
Wetted Materials: Body: Acrylic plastic; O-ring: Buna-N (fluoroelastomer available); Metal parts: SS; Float: SS.
Fittings: VFC: PVC; VFCII: Acetal thermoplastic.
Temperature & Pressure Limits: 100 psig (6.9 bar) @ 120°F (48°C).
Accuracy: 2% of FS.
Process Connection: VFC: 1˝ female NPT back connections. End connections optional; VFCII: 1˝ male NPT back connections. End connections optional.
Scale Length: 5˝ typical length.
Mounting Orientation: Mount in vertical position.
Weight: 24 to 25 oz (.68 to .71 kg).
