Dwyer Series MSX Magnesense Differential Pressure Transmitter

Dwyer Series MSX Magnesense Differential Pressure Transmitter

The Series MS Magnesense® Differential Pressure Transmitter is an extremely versatile transmitter for monitoring pressure and air velocity. This compact package is loaded with features such as: field selectable English or metric ranges, field upgradeable LCD display and the ability to select a square root output for use with pitot tubes and other similar flow sensors. Also, a single digital push button simultaneously calibrates both zero and span reducing installation and setup time. These features along with exceptional long term performance enables the Magnesense® to be the solution for a myriad of pressure and air flow applications.

Whatsapp Us

The Dwyer Series MS Magnesense® is a line of versatile differential pressure transmitters used for monitoring pressure and air velocity in HVAC, building automation, and other industrial applications. They use magnetic sensing technology to offer long-term performance and stability. The transmitters come in various configurations, including models with or without an LCD screen, different pressure ranges, and multiple output signals.

Key features :
Pressure and velocity monitoring: Can be configured for linear pressure output or linear velocity output through square root extraction.
Field-selectable ranges: Most models offer multiple pressure ranges that can be selected in the field, with options for both English and metric units.

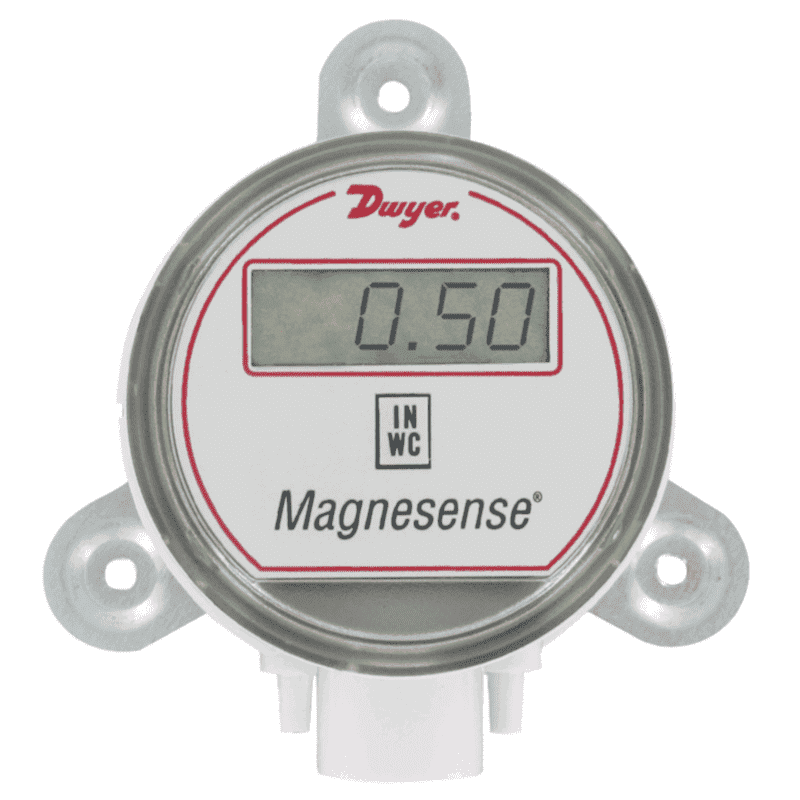

Optional LCD display: Some models include a 4-digit LCD display that can be added after installation.
Adjustable settings: Features like adjustable signal damping and a push-button zero and span calibration help with setup and performance.
Multiple output signals: Depending on the specific model, options include 2-wire 4 to 20 mA or 3-wire 0 to 5 V or 0 to 10 V output signals.
Durable enclosure: The NEMA 4X (IP65) rated enclosure protects against dust and moisture. Common configurations

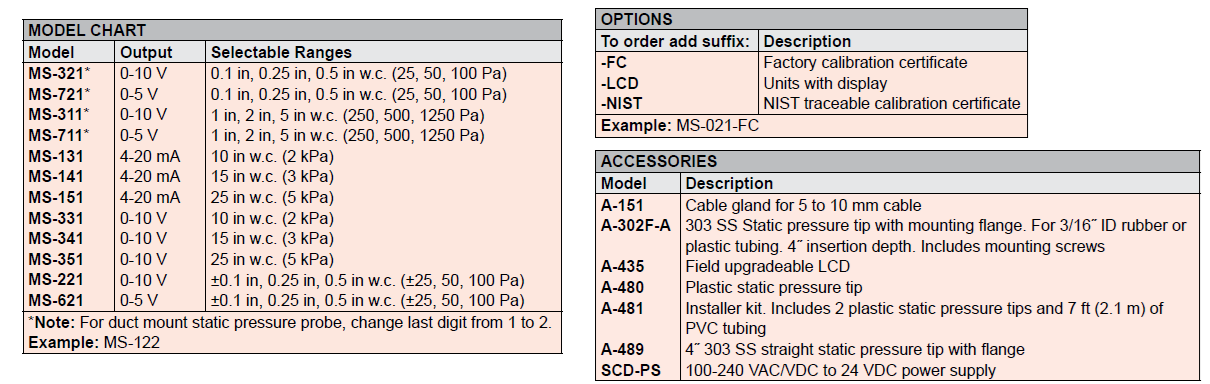

Dwyer MS-311 Magnesense Differential Pressure Transmitter: Wall-mounted transmitter for monitoring pressure and air velocity, with user-selectable English or Metric ranges. It provides a 0 to 10 VDC output signal.
Dwyer MS-221-LCD Pressure Magnesense: Features a 4-digit LCD display and provides a 4 to 20 mA output signal.
Dwyer MS-121: A multi-range differential pressure transmitter with a 4 to 20 mA output, and often available without a display.
Dwyer Series MS2 and MSX Magnesense II Differential Pressure Transmitters: Newer generations of the MS series that offer enhanced features like even more configurable ranges and simplified ordering. The MSX, for example, offers up to 32 configurable ranges and dual voltage and current output signals.
