CDI 6400

CDI 6400

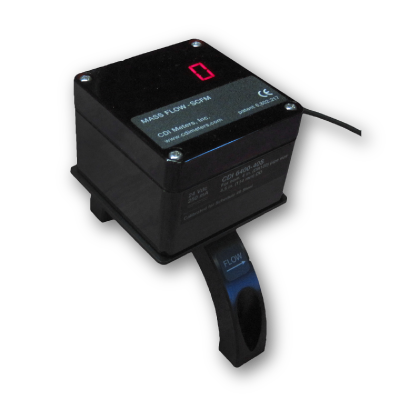

CDI 6400 for 2″ – 8″ pipes

Although our initial ruggedized flowmeter is still available for purchase, we now offer the CDI 5000 Series flowmeters with the same great features and the option for wireless monitoring.

The flowmeter clamps onto a pipe, with two flowsensing probes projecting into the pipe through 3/16 in. drilled holes. It seals directly to the pipe; no cutting or welding is required for installation. Because each flowmeter is made and calibrated for a specific size of pipe, the display indicates flow directly, with no setup or adjustment.

Whatsapp Us

Flowmeter For Compressed-air Systems

  • Easy to install
  • Housing and display rotate to suit piping orientation
  • IP-66 rating; suitable for wet locations
  • Milliamp and pulse outputs
  • Optional RS-485 output for networking

The CDI 6400 is similar to the CDI 6200, except that it has its probes mounted side-by-side in a single ring and it is built for larger pipe sizes. Like the 6200 and the 5000-series meters, it is a thermal mass flow meter in which one probe senses the air temperature and the other is maintained ten degrees above the air temperature. It has the same milliamp and pulse outputs, the same large, bright display, and an optional Modbus RS485 output for networking.
